參數規格

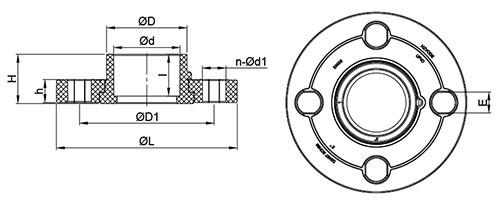

規格 | 外形尺寸 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | I | ΦD1 | L | h | H | N-Φd1 | E | |
| 1／2″ | 30.0 | 21.5 | 22.2 | 60.5 | 95.0 | 14.5 | 28.0 | 4-Φ16.0 | 16.0 |
| 3／4″ | 35.0 | 26.9 | 25.4 | 70.0 | 105.0 | 15.0 | 30.0 | 4-Φ16.0 | 16.0 |
| 1″ | 44.0 | 33.7 | 28.6 | 79.5 | 118.0 | 16.0 | 34.0 | 4-Φ16.0 | 16.0 |
| 1—1／4″ | 54.0 | 42.4 | 31.8 | 89.0 | 140.0 | 16.0 | 38.0 | 4-Φ19.0 | 17.0 |
| 1—1／2″ | 60.3 | 48.6 | 34.9 | 98.5 | 150.0 | 18.0 | 42.0 | 4-Φ19.0 | 17.0 |
| 2″ | 73.3 | 60.6 | 38.1 | 120.5 | 165.0 | 21.0 | 45.0 | 4-Φ19.0 | 19.0 |
| 2—1／2″ | 89.2 | 73.4 | 44.5 | 140.0 | 185.0 | 23.0 | 54.0 | 4-Φ19.0 | 19.0 |
| 3″ | 105.5 | 89.3 | 47.6 | 152.5 | 200.0 | 25.0 | 56.0 | 8-Φ19.0 | 19.0 |
| 4″ | 133.0 | 114.8 | 57.2 | 190.5 | 228.5 | 27.0 | 64.5 | 8-Φ19.0 | 19.0 |
| 5″ | 162.0 | 141.8 | 66.7 | 216.0 | 254.0 | 30.0 | 74.5 | 8-Φ22.0 | 22.0 |
| 6″ | 192.0 | 168.8 | 76.2 | 241.5 | 285.0 | 31.5 | 83.0 | 8-Φ22.0 | 22.0 |
| 8″ | 246.0 | 219.8 | 101.6 | 298.0 | 343.0 | 36.5 | 110.0 | 8-Φ22.0 | 22.0 |
| 10″ | 300.0 | 273.8 | 127.0 | 362.0 | 415.0 | 42.5 | 138.0 | 12-Φ25.0 | 25.4 |
| 12″ | 364.0 | 324.6 | 152.4 | 432.0 | 483.0 | 44.5 | 170.0 | 12-Φ25.0 | 25.4 |
| 14″ | 400.0 | 356.5 | 177.8 | 476.0 | 533.0 | 51.5 | 200.0 | 12-Φ30.0 | 28.5 |
